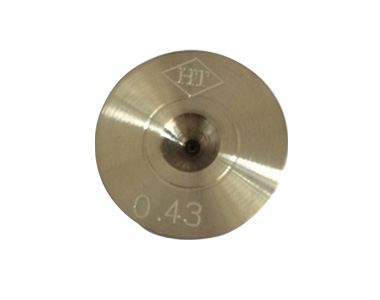

Recommended welding wire, stainless steel wire series dedicated mold

Technical parameters:

Entrance angle: 45 º ± 10 º

Working area: ± 1 º angle

Bearing length: 30%-50%

Compression to angle: 12 º -16 º

The ellipse degree: ≤ 0.002mm

Export area: 60 ° ± 5 º angle

In order to meet the different needs of customers, our PCD core is divided into priority(PCD-A) and normal (PCD-B) two.

PCD-A is equivalent to or even exceed the import mold without doubt the stability, high quality and high finish import the same size core basic consistent degree as well asclose to the same size import core of long-lived, mainly to adapt the production process is stable and reliable, high quality requirements of the factory, has been the core products overseas manufacturers to replace the first international flow.

PCD-B relatively modest price, suitable for the requirements on product quality,seeking the most cost-effective manufacturers.

PCD cobalt based wire drawing die with diamond powder, the cobalt or silicidecatalyst, under high temperature and high pressure synthesis of diamond aggregates.The relative theory of surfaces, making two kinds of technique of diamond,characteristics of PCD cobalt based polycrystalline diamond is more close to theimport of polycrystalline diamond and silicon, polycrystalline diamond, low price.
